PCF Female Straight Fittings

PCF female-thread straight push-in fittings connect pneumatic tubing to a mating male-thread port. The listed references are PCF6-01, PCF8-02, PCF10-03, PCF12-03 and PCF12-04. Select the model and provide tube outside diameter, the full thread standard and size, quantity and operating conditions for a configuration-based inquiry.

Category:

Description

PCF female threaded pneumatic straight fitting selection

A PCF female threaded pneumatic straight fitting provides a straight connection between pneumatic tubing and a mating male-thread component. Use this series when the connection needs a female thread rather than an external male thread, a panel-mounted bulkhead fitting or two tube ports.

Treat the model references on this page as inquiry references. Confirm the tube outside diameter and the full mating-thread standard and size for the exact configuration. A model suffix or concept illustration alone does not establish thread compatibility, dimensions or availability. The same check applies whenever a pneumatic female connector must connect to an existing male-thread component.

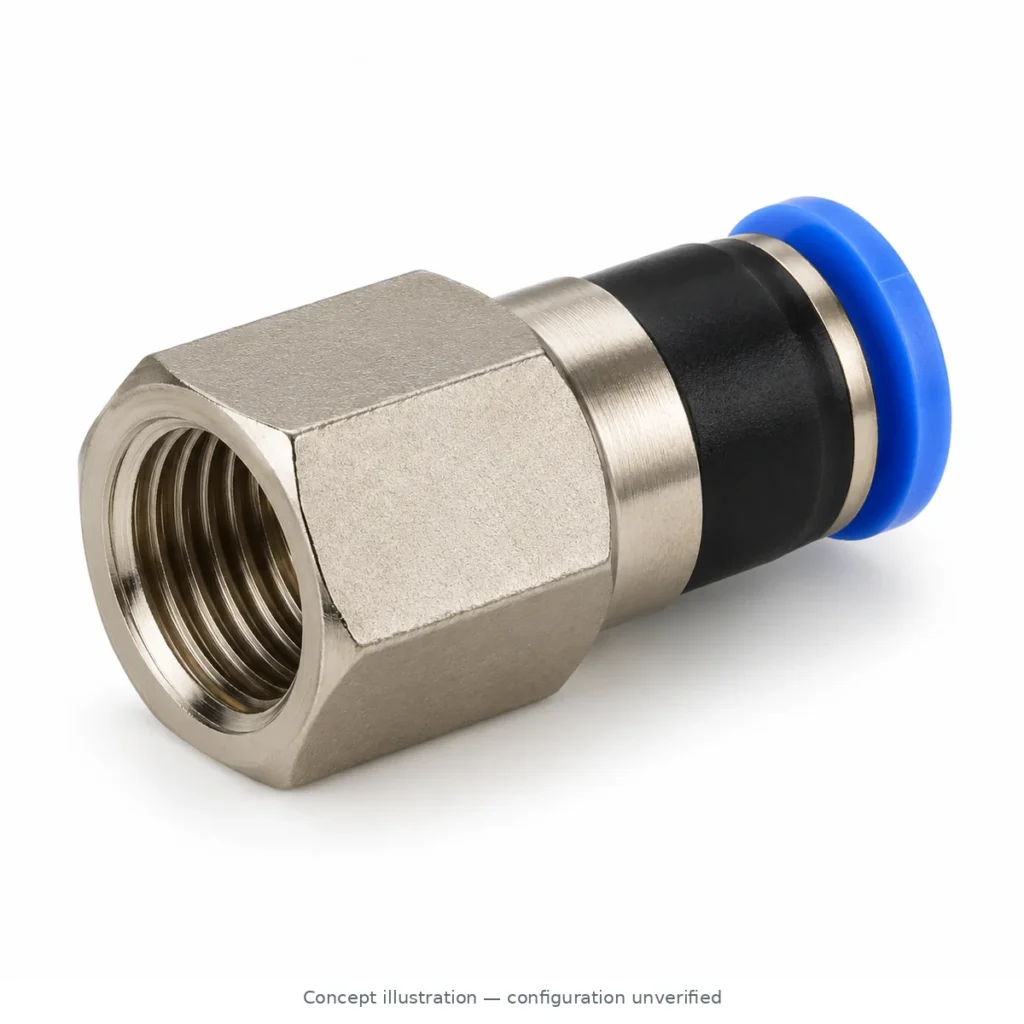

PCF8-02 female-thread detail reference illustration
Reference illustration showing the female-thread end of a PCF8-02 fitting.

How to identify a pneumatic female connector

Begin with the connection at each end. Record the tube outside diameter on the push-in side. On the threaded side, determine whether the mating male thread is parallel or tapered, then record its standard and size. Thread diameter alone may not identify the standard. The Swagelok Thread and End Connection Identification Guide provides a step-by-step reference for identifying common thread forms and end connections.

A matching nominal number is a starting point. Verify the thread standard and size before specifying a female threaded straight fitting. Keep the known measurements and the stated standard together in the inquiry. If the thread standard remains uncertain, include clear photographs and the measured diameter and pitch so the configuration can be reviewed before quotation.

For a practical comparison of BSPP, BSPT and NPT, read our pneumatic thread identification guide. That guide explains which observations to collect before choosing a pneumatic female connector.

PCF model specifications and inquiry references

This page lists PCF6-01, PCF8-02, PCF10-03, PCF12-03 and PCF12-04 as inquiry references. Choose one of the listed references when sending an inquiry. Keep each model, quantity and unit on a separate line if you need several configurations. Request the PCF model specifications and drawing for each reference you intend to order. Check the tube size, mating-thread standard and operating conditions against the quoted configuration.

PCF Female Straight Fittings model references
Series Model reference Next step
PCF PCF6-01 Select & inquire
PCF PCF8-02 Select & inquire
PCF PCF10-03 Select & inquire
PCF PCF12-03 Select & inquire
PCF PCF12-04 Select & inquire

What to include in your inquiry

Send the complete PCF model reference, quantity and unit, tube outside diameter, mating-thread standard and size, sealing or material requirements, operating conditions and delivery destination. We will confirm the quoted configuration before any order.

Identify the mating component and state whether the requested female threaded straight fitting is for a new assembly or a replacement. Include the existing part reference when available, and note any space constraints that affect a straight connection. This information lets the supplier review the selected reference against the application without treating the list as a final compatibility statement.

Model References
Review listed models and keep the product group with your inquiry.
Check Specifications
Confirm tube size, thread, material and operating conditions.
Parts Lists
Send each model or description with its quantity and unit.
Ask a Question
Share unclear details through our inquiry or contact page.
